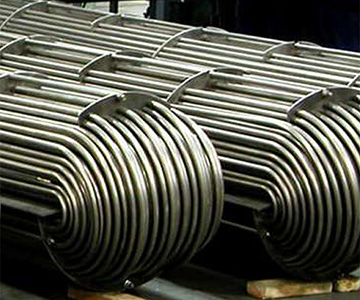

What are the details of the 09CrCuSb heat exchanger steel tubes

In today's industrial equipment, facing increasingly severe corrosion challenges, 09CrCuSb heat exchanger steel tubes have become a key material in the manufacturing of heat exchange equipment due to their superior performance. This special alloy material, known in the industry as ND steel, was specifically developed to solve the corrosion problems of equipment under extreme conditions, such as high temperature and high sulfur content, and has been widely used in pillar industries of the national economy, such as power and petrochemicals.

Material properties and technical advantages of 09CrCuSb heat exchanger steel tubes

The technical essence of 09CrCuSb heat exchanger steel tubes lies in their unique alloy formula design. By precisely controlling the proportions of key elements such as chromium, copper, and antimony, an optimized combination of material properties was achieved:

Chromium: The content is controlled at around 0.9%, which forms a stable chromium oxide protective layer while avoiding high costs.

Copper: The addition of copper significantly improves the corrosion resistance of the steel in sulfur-containing environments.

Antimony: As a key trace element, the addition of antimony further enhances the density and stability of the oxide film.

This alloy design enables the 09CrCuSb heat exchanger steel tubes to exhibit excellent performance in the face of sulfuric acid dew point corrosion, with corrosion resistance reaching 3-5 times that of ordinary carbon steel, significantly extending the service life of the equipment. Simultaneously, the material maintains good machinability, facilitating subsequent processing steps such as pipe bending and welding.

09CrCuSb Heat Exchanger Steel Tube Product Specifications and Quality Assurance

To meet the needs of different industrial scenarios, 09CrCuSb heat exchanger steel tubes offer a comprehensive range of specifications:

Diameter range: From small tubes of 22mm to large-diameter tubes of 630mm, covering almost all heat exchange equipment requirements.

Wall thickness selection: Different wall thicknesses can be selected according to working pressure and media characteristics.

Custom length: Supports fixed-length cutting to minimize on-site processing.

The quality of 09CrCuSb heat exchanger steel tubes strictly adheres to the national standard GB/T5310-2017, while also implementing the more stringent enterprise standard Q/TDGG0039-2004. Each batch of products undergoes multiple inspection procedures, including chemical composition analysis, mechanical property testing, and non-destructive testing, to ensure that performance indicators fully meet standards.

Detailed Explanation of Typical Application Scenarios of 09CrCuSb Heat Exchanger Steel Tubes

1. Application of 09CrCuSb Heat Exchanger Steel Tubes in the Power Industry

In thermal power plants, 09CrCuSb heat exchanger steel tubes are mainly used for:

Economizer systems: resisting sulfide corrosion in flue gas

Air preheaters: coping with the heat exchange environment between high-temperature flue gas and air

Waste heat boilers: maintaining long-term stable operation under high temperature and high pressure conditions

2. Applications of 09CrCuSb Heat Exchanger Steel Tubes in Petrochemical Industries

Typical applications of 09CrCuSb heat exchanger steel tubes in petrochemical plants include:

Flue gas waste heat recovery systems in catalytic cracking units

Heat exchange equipment in hydrogenation units

Heat exchange units in sulfur recovery units

Environmental protection facilities

With increasingly stringent environmental requirements, 09CrCuSb heat exchanger steel tubes have become an ideal choice for: flue gas desulfurization systems, key components of waste gas treatment equipment, and preferred materials for industrial wastewater treatment heat exchangers.

Through a perfect combination of material performance and service system, 09CrCuSb heat exchanger steel tubes have become a solid guarantee for the long-term reliable operation of industrial equipment in corrosive environments, creating significant economic benefits and safety value for users in various industries.
