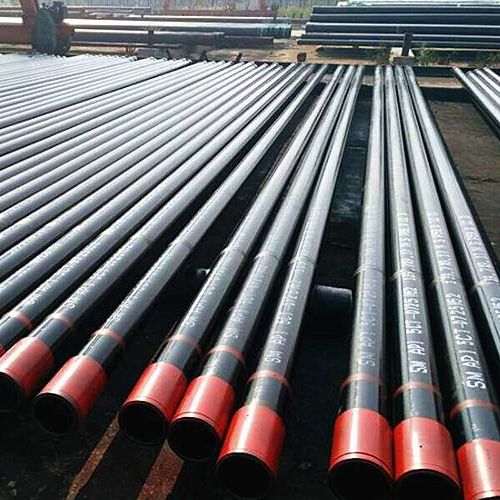

OCTG Casing and Tubing Pipe

Short Description:

  • Keywords（pipe type）:API Tubing,API Casing，OTCG Casing and Tubing，oil pipes,tubing
  • Size:OD:5 1/2” to 20” Length usually in R3. 1.0”, 1.315”, 1.66”, 1.9”, 2.063”, 2 3/8”, 3 1/2”and 4 1 /2”, Length in R2.
  • Standard & Grade:API 5CT J55 / K55, N80-1, N80Q, C90, T95, P110, Q125 and 13Cr
  • Connections: BTC (thread coupling buttress), LTC (long round thread coupling), NUE, EUE, premium connection.
  • Delivery:Within 30 days and Depends on your order quantity
  • Payment:TT, LC , OA , D/P
  • Packing:Bundled/In Bulk, Plastic Caps Plugged, Standard Export Package
  • Usage:Used for the Transmission of Oil & Gas

  • API Tubing,API Casing，OTCG Casing and Tubing，oil pipes,tubing

  • OD5 1/2” to 20” Length usually in R3. 1.0”, 1.315”, 1.66”, 1.9”, 2.063”, 2 3/8”, 3 1/2”and 4 1 /2”, Length in R2.

  • API 5CT J55 / K55, N80-1, N80Q, C90, T95, P110, Q125 and 13Cr

  • Used for the Transmission of Oil & Gas

SKU:
Availability:

Description
Dimension
Application
Process

▇ ▍ Description


Hunan Great Steel supplies API 5CT casing pipes with the following sizes and specifications:


Standard and Grades: API 5CT J55 / K55, N80-1, N80Q, C90, T95, P110, Q125 and 13Cr

Casing Pipe Size range: 5 1/2” to 20” Length usually in R3.

Tubing Pipe dimensions range: 1.0”, 1.315”, 1.66”, 1.9”, 2.063”, 2 3/8”, 3 1/2”and 4 1 /2”, Length in R2.

Type of connections for Casing: BTC (thread coupling buttress), LTC (long round thread coupling), premium connection.

Types of connections for Tubing: BTC, NUE, EUE, Premium


Chemical compositions of casing pipe


StandardGradeChemical compositions（％）
API SPEC 5CTJ55CSiMnPSCrNiCuMoV
K550.34～0.390.20～0.351.25～1.50≤0.020≤0.015≤0.15≤0.20≤0.20//
N800.34～0.380.20～0.351.45～1.70≤0.020≤0.015≤0.15///0.11～0.16
L800.15～0.22≤1.000.25～1.00≤0.020≤0.01012.0～14.0≤0.20≤0.20//
P1100.26～0.3950.17～0.370.40～0.70≤0.020≤0.0100.80～1.10≤0.20≤0.200.15～0.25≤0.08

Mechanical properties of casing pipe


GradeTypeTotal elongation

under load

 (%)		Yield strength

 (min)Mpa		Yield strength

(max)Mpa		Tensile strength

min Mpa		Hardness

Max (HRC)		Hardness

Max (HBW)
J55-0.5379552517--
K55-0.5379552655--
N8010.5552758689--
N80Q0.5552758689--
L8010.555265565523241
L809Cr0.555265565523241
L8013Cr0.555265565523241
C90-0.562172468925.4255
C95-0.5655758724--
T95-0.565575872425.4255
P110-0.6758965862--
Q125All0.658621034931--


▇ ▍ Dimension of API Casing Steel Pipe

Dimension-1

▇ ▍ Dimension of API Tubing Steel Pipe

Dimension-2


▇ ▍Application


  • Oil well extracting

  • Borehole

  • Borewell

  • Extracting Oil or Gas from Wells


▇ ▍Process of API Casing Steel Pipe

Process-1

▇ ▍Process of API Tubing Steel Pipe

Process-2

Description

▇ ▍ Description


Hunan Great Steel supplies API 5CT casing pipes with the following sizes and specifications:


Standard and Grades: API 5CT J55 / K55, N80-1, N80Q, C90, T95, P110, Q125 and 13Cr

Casing Pipe Size range: 5 1/2” to 20” Length usually in R3.

Tubing Pipe dimensions range: 1.0”, 1.315”, 1.66”, 1.9”, 2.063”, 2 3/8”, 3 1/2”and 4 1 /2”, Length in R2.

Type of connections for Casing: BTC (thread coupling buttress), LTC (long round thread coupling), premium connection.

Types of connections for Tubing: BTC, NUE, EUE, Premium


Chemical compositions of casing pipe


StandardGradeChemical compositions（％）
API SPEC 5CTJ55CSiMnPSCrNiCuMoV
K550.34～0.390.20～0.351.25～1.50≤0.020≤0.015≤0.15≤0.20≤0.20//
N800.34～0.380.20～0.351.45～1.70≤0.020≤0.015≤0.15///0.11～0.16
L800.15～0.22≤1.000.25～1.00≤0.020≤0.01012.0～14.0≤0.20≤0.20//
P1100.26～0.3950.17～0.370.40～0.70≤0.020≤0.0100.80～1.10≤0.20≤0.200.15～0.25≤0.08

Mechanical properties of casing pipe


GradeTypeTotal elongation

under load

 (%)		Yield strength

 (min)Mpa		Yield strength

(max)Mpa		Tensile strength

min Mpa		Hardness

Max (HRC)		Hardness

Max (HBW)
J55-0.5379552517--
K55-0.5379552655--
N8010.5552758689--
N80Q0.5552758689--
L8010.555265565523241
L809Cr0.555265565523241
L8013Cr0.555265565523241
C90-0.562172468925.4255
C95-0.5655758724--
T95-0.565575872425.4255
P110-0.6758965862--
Q125All0.658621034931--


Dimension

▇ ▍ Dimension of API Casing Steel Pipe

Dimension-1

▇ ▍ Dimension of API Tubing Steel Pipe

Dimension-2


Application

▇ ▍Application


  • Oil well extracting

  • Borehole

  • Borewell

  • Extracting Oil or Gas from Wells


Process

▇ ▍Process of API Casing Steel Pipe

Process-1

▇ ▍Process of API Tubing Steel Pipe

Process-2
