What are the applications of Q355D straight seam welded pipe in industrial projects

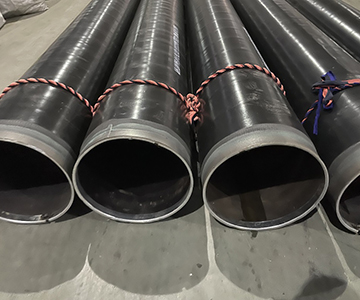

Q355D straight seam welded pipe, a structural steel pipe widely used in construction, machinery, bridges, and other fields, has become an indispensable material in modern industrial construction due to its excellent mechanical and welding properties. This type of steel pipe uses high-quality carbon structural steel or low-alloy high-strength structural steel as raw materials and is formed through high-frequency welding. It features high strength, good toughness, and excellent processing performance, meeting the stringent requirements of various engineering projects for material load-bearing capacity and durability.

From a material properties perspective, the most significant advantage of Q355D straight seam welded pipe lies in its outstanding comprehensive mechanical properties. Q355D straight seam welded pipe has a yield strength exceeding 355MPa, a tensile strength between 470-630MPa, and an elongation of not less than 22%. These indicators ensure that the steel pipe maintains structural stability even under heavy loads. Compared to ordinary carbon steel, Q355D straight seam welded pipe, by adding appropriate amounts of alloying elements (such as manganese and silicon), not only improves strength but also significantly enhances low-temperature impact toughness, allowing it to maintain good impact resistance even at -20℃. This characteristic is particularly important for engineering construction in cold northern regions.

In terms of manufacturing process, modern Q355D straight seam welded pipe is mainly manufactured using high-frequency resistance welding (ERW). This process uses high-frequency current to instantly heat the edges of the steel strip to a molten state, achieving seamless welding under the action of extrusion rollers. Compared to traditional submerged arc welding, high-frequency welding has advantages such as a smaller heat-affected zone, faster welding speed, and lower energy consumption, effectively controlling welding deformation and ensuring the accuracy of the steel pipe's geometric dimensions.

In terms of quality control, Q355D straight seam welded pipe complies with national standards such as GB/T 3091-2015 "Welded Steel Pipes for Low-Pressure Fluid Transportation" and GB/T 13793-2016 "Straight Seam Electric Welded Steel Pipes". The production process requires numerous rigorous tests, including ultrasonic flaw detection (to detect weld defects), hydrostatic testing (to verify pressure resistance), mechanical property testing (to ensure strength meets standards), and dimensional accuracy measurement. Notably, to adapt to the special environments of marine engineering and other fields, some manufacturers have developed Q355D straight seam welded pipes with corrosion resistance. By adding alloying elements such as copper and chromium or using galvanizing, the service life of the steel pipes in salt spray environments is increased by 3-5 times.

From an application perspective, Q355D straight seam welded pipes demonstrate excellent applicability across multiple industries. In the field of building steel structures, they are commonly used in load-bearing components such as columns and beams in high-rise buildings. For example, in a landmark building project, an aerial walkway constructed using Q355D straight seam welded pipes spans 45 meters, with a single pipe bearing a load exceeding 200 tons. In bridge engineering, this material is particularly suitable for constructing arch ribs and supporting structures for long-span bridges, and its excellent weldability facilitates on-site assembly and installation. In the machinery manufacturing industry, Q355D straight seam welded pipe is widely used in the manufacture of components such as engineering machinery booms and conveyor trusses. Data from a well-known heavy industry company shows that crane booms made with Q355D straight seam welded pipe have an 18% higher load-bearing capacity compared to traditional materials for the same weight.

With the advancement of the "dual carbon" target, Q355D straight seam welded pipe is also showing great potential in the new energy field. In photovoltaic support systems, support structures made with Q355D straight seam welded pipe are not only 20% lighter than traditional solutions but also have better wind pressure resistance. In wind power generation, it is used to manufacture internal reinforcement structures for towers. An application in a 3MW wind turbine project shows that an optimized Q355D straight seam welded pipe structure can reduce tower manufacturing costs by approximately 15%. Furthermore, in municipal construction, this material is commonly used to manufacture streetlight poles, billboard supports, and other urban facilities. After hot-dip galvanizing, its service life can reach over 30 years.

From the perspective of market development trends, my country's Q355D straight seam welded pipe industry is exhibiting three significant characteristics: First, production capacity concentration continues to increase, with leading enterprises raising the yield of Q355D straight seam welded pipes to over 98% through technological upgrades; second, products are moving towards high-end products, with some enterprises' Q355D weathering steel pipes having obtained EU certification and successfully entered the international market; third, green manufacturing has become a consensus, with major manufacturers generally adopting energy-saving technologies such as photovoltaic power generation and waste heat recovery, resulting in a 40% reduction in production energy consumption compared to five years ago. According to industry statistics, my country's Q355D straight seam welded pipe production exceeded 25 million tons in 2024, and the market size is projected to reach 180 billion yuan in 2025, maintaining a compound annual growth rate of around 8%.

When selecting Q355D straight seam welded pipes, engineering units need to focus on several key indicators: First, they should verify the steel's quality certificate to confirm that the chemical composition and mechanical properties meet the GB/T 1591-2018 standard; second, they should inspect the weld quality, as high-quality products should have smooth, even welds, and ultrasonic testing should show no defects such as incomplete fusion or cracks; third, they should measure the pipe's ovality and straightness, taking the Φ325mm specification as an example, the industry standard requires a curvature of no more than 1.5mm/m; finally, they should consider the supplier's supporting service capabilities, including value-added services such as beveling and corrosion protection. Procurement experience from a large infrastructure project shows that choosing a brand supplier with a complete quality traceability system can increase the material acceptance rate from 85% to 99%.

Looking to the future, Q355D straight seam welded pipe technology will continue to innovate in three directions: first, material upgrading, developing a new generation of steel with higher strength and better weldability through micro-alloying technology; second, process innovation, with the application of new technologies such as laser welding further improving weld quality and production efficiency; and third, intelligent development, with smart factories based on the Industrial Internet enabling full-process digital management from order placement to finished product delivery. It is foreseeable that with the continued advancement of my country's new urbanization construction and infrastructure investment, Q355D straight seam welded pipe, as a representative of high-performance structural materials, will play an important role in a wider range of fields, providing a solid and reliable material guarantee for modern engineering construction.
