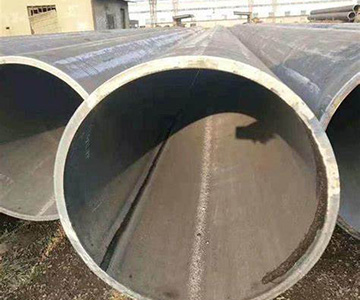

About the characteristics and production application details of Q355C straight seam welded steel pipe

Q355C straight seam welded steel pipe is a high-quality steel product widely used in construction, bridges, machinery manufacturing, petrochemical, and other fields. As a low-alloy high-strength structural steel, Q355C has excellent mechanical properties, welding properties, and weather resistance, and has become one of the indispensable materials in modern engineering construction.

First, the material characteristics and standard specifications of Q355C straight seam welded steel pipe

The material of Q355C straight seam welded steel pipe conforms to the GB/T 1591-2018 "Low Alloy High Strength Structural Steel" standard. In its name, "Q" represents yield strength, "355" means that the lower limit of yield strength is 355MPa, and "C" refers to the quality grade (0℃ impact test). Compared with ordinary carbon steel, Q355C significantly improves strength and toughness by adding alloy elements such as manganese and silicon, and has the following characteristics:

1. High strength: tensile strength reaches 470-630MPa, which can reduce structural weight and reduce engineering costs;

2. Good weldability: carbon equivalent (Ceq) is controlled below 0.45%, suitable for various welding processes;

3. Excellent low-temperature toughness: -20℃ impact energy is not less than 34J, suitable for cold areas;

4. Atmospheric corrosion resistance: containing copper, chromium, and other elements, the outdoor service life is 20%-30% higher than that of ordinary steel.

Second, the production process and technical points of Q355C straight seam welded steel pipe

The production of straight seam welded steel pipe mainly adopts high-frequency electric resistance welding (ERW) or submerged arc welding (SAW) process, and the core process includes:

1. Plate and strip pretreatment: flatten and trim the Q355C steel coil to ensure that the width tolerance is within ±0.5mm;

2. Forming welding: form into a tube through multiple roll bending, use high-frequency current (100-400kHz) to instantly melt the edge and pressurize welding, and the weld temperature can reach 1400℃;

3. Online heat treatment: medium-frequency induction annealing of the weld to eliminate residual stress and refine the grain;

4. Sizing and testing: use a four-roller micro-tension sizing machine to calibrate the size, and cooperate with ultrasonic flaw detection (UT) and eddy current testing (ET) to ensure quality.

Third, the application fields and engineering cases of Q355C straight seam welded steel pipe

With its excellent comprehensive performance, Q355C straight seam welded steel pipe plays an important role in many fields:

- Building structure: used for super high-rise building columns and large-span venue trusses, replacing traditional Q235B to reduce weight by 15%-20%;

- Bridge engineering: A large number of Φ508mm×12mm welded pipes are used in the auxiliary structures of the Hong Kong-Zhuhai-Macao Bridge, and the salt spray corrosion resistance has passed the 3000-hour test;

- Energy transportation: as a medium and low-pressure oil and gas pipeline (≤6.4MPa), the annual demand exceeds 2 million tons;

- Machinery manufacturing: key load-bearing components such as engineering machinery booms and port crane legs.

Fourth, the market status and supply and demand analysis of Q355C straight seam welded steel pipes

1. Raw material fluctuations: The iron ore price index rose by 12% from the beginning of the year, pushing up production costs;

2. Regional differences: The ex-factory price in East China is 80-100 yuan/ton lower than that in North China;

3. Specification premium: The processing fee of large-diameter (≥Φ600mm) products increased by 8%-10%;

4. Policy-driven: New infrastructure projects are accelerating, and demand in the second quarter is expected to increase by 15% month-on-month.

Fifth, the purchase suggestions and quality control of Q355C straight seam welded steel pipes

When purchasing Q355C straight seam welded steel pipes, you need to pay attention to the following:

1. Qualification documents: require manufacturers to provide material lists (including measured values of elements such as C and Mn) and third-party test reports (such as SGS);

2. Process verification: check the weld UT test spectrum, and the fusion line width should be > 0.8mm;

3. On-site acceptance: sample measurement of ovality (≤1%D), wall thickness deviation (±10%t), and flattening test (spacing ≤3t without cracks);

4. Anti-corrosion plan: select hot-dip galvanizing (zinc layer ≥80μm) or epoxy coal tar coating according to the use environment.

It is necessary to be vigilant against some small factories pretending to be C-grade steel with Q355B, or falsely marking the wall thickness (such as marking 8mm as 10mm). It is recommended to use a handheld spectrometer for on-site material analysis.

Sixth, the development trend and technological innovation of Q355C straight seam welded steel pipe

1. Intelligent manufacturing: the laser vision-guided weld tracking system is used to reduce the scrap rate to below 0.3%;

2. Green production: Baosteel has piloted the hydrogen reduction process, and the carbon emissions per ton of pipe are reduced by 40%;

3. High performance: adding trace Nb and V elements to develop Q390C grade welded pipes, the strength is increased by 20% and the weldability is maintained;

4. Composite application: composite with FRP (fiber-reinforced composite material) to manufacture lightweight hybrid pipes, which have been successfully applied to deep-sea oil and gas platforms.

With the advancement of the "dual carbon" goal, it is expected that the application of Q355C straight seam welded steel pipes in the field of wind power towers will maintain an average annual growth rate of 25% from 2025 to 2030, becoming a new growth pole.
