Types, Characteristics, and Cutting Details of Oil Screen Steel Pipes

First, Types of Oil Screen Steel Pipes

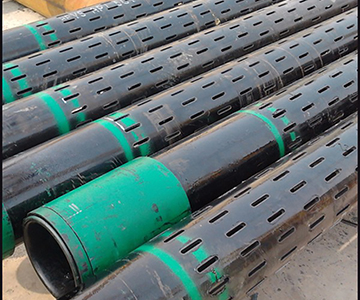

1. Slotted Oil Screen Steel Pipe

2. Drilled Oil Screen Steel Pipe

3. Wire-wound Oil Screen Steel Pipe

4. Bridge-type Oil Screen Steel Pipe

5. Composite Oil Screen Steel Pipe

Second, Characteristics of Oil Screen Steel Pipes.

1. Oil screen steel pipes are machined from J55 or N80 oil casing, resulting in high strength and resistance to deformation.

2. The slit edges of the oil screen steel pipe have good perpendicularity, smooth cuts without burrs, and uniform slits.

3. Large flow area: A 27/8" oil screen steel pipe with 300 slots per 1.5m provides a flow area of 72 cubic centimeters, 2.4 times larger than that of similarly sized oil pipes. This facilitates fluid flow.

4. The advantages of oil screen steel pipes are even more pronounced in deviated and horizontal wells.

5. Overall, anti-corrosion treatment forms a dense protective layer on all surfaces of the oil screen steel pipe, improving its corrosion resistance and wear resistance, effectively extending its downhole service life.

6. Oil screen steel pipes are suitable for sand control in wells producing sand particles larger than 0.3mm.

7. Oil screen steel pipes are simple to operate, convenient to use, and have a large inner diameter, facilitating pipe string configuration.

Third, Cutting Oil Screen Steel Pipes.

In oil drilling and production operations, oil screen steel pipes are important equipment, often used in early well completion or oil production sand control. Currently, the most commonly used oil screen steel pipe is the wire-wound oil screen steel pipe. This type of oil screen steel pipe is manufactured. The manufacturing method involves winding steel wire of a certain cross-section around a metal liner evenly distributed around the screen rod or with openings, then welding it securely and leaving a certain gap as screen holes. Although this manufacturing method has been used by many manufacturers in China, this type of oil screen has some problems when running into wells, especially when passing through bends in highly deviated or horizontal wells under high pressure. It inevitably collides, is squeezed, and rubs against the well wall or oil casing, easily causing wire tangling, resulting in damage to the oil screen or deformation of the gaps, leading to reduced or ineffective well completion quality and sand control. To address this drawback of wire-wound oil screens, slotted oil screens that integrate steel pipe and slot have emerged. Due to their superior performance and low price, slotted oil steel pipes have received close attention from major oilfields and have been widely adopted since their inception. It is evident that the emergence of slotted steel pipes has provided the material conditions for the development of horizontal wells and sidetracking wells, as well as the extraction of oil from high-sand reservoirs.
