ERW Steel Pipe


Availability:

Short Description:

Keywords（pipe type）:ERW Pipe, ERW Steel Pipe, Electric Resistance Welded Pipe
Size:OD: 21.3mm ~ 660mm;WT: 1mm ~ 17.5mm; LENGTH: 0.5mtr ~ 22mtr (5.8/6/11.8/12 meters, SRL, DRL)
Standard & Grade:ASTM A53, Grade A/B/C,API 5L,PSL1,PSL2,GR.B/X42-X80,ASTM A795,ASTM A135
Ends:Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends,Gooved Ends
Delivery:Within 10-30 days and depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Usage:For Low Pressure Fluid Transmission, Machinery Manufacturing,Equipment Fabrication,Fire Prevention Pipe

Description

Process

Equipment

Dimension

▇ ▍ Description

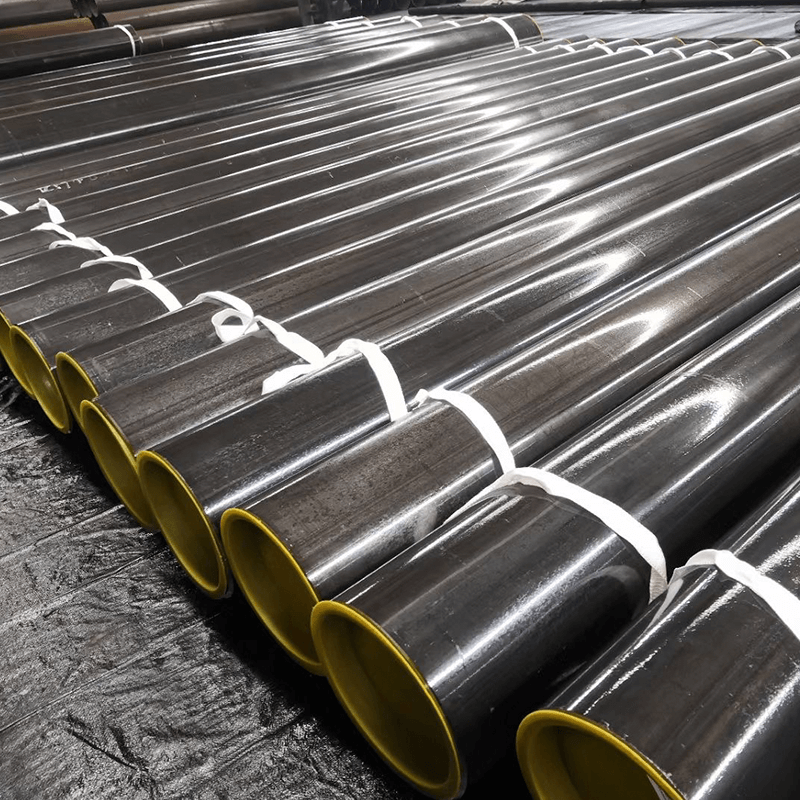

ERW Steel Pipe( Electric Resistance Welded Steel Pipe )

Line Pipe

Standard: API SPEC 5L, GB/T 9711-1, GB/T 9711-2, ISO 3183-1, ISO 3193-2

Application:For conveying gas, water, and oi l in both the oil and natural gas industries.

▇ ▍ Tolerances of Outside Diameter - ERW Steel Pipe

tolerances_of_outside_diameter_erw_steel_pipe

▇ ▍ Tolerances of Wall Thickness - ERW Steel Pipe

tolerances_of_wall_thickness_erw_steel_pipe

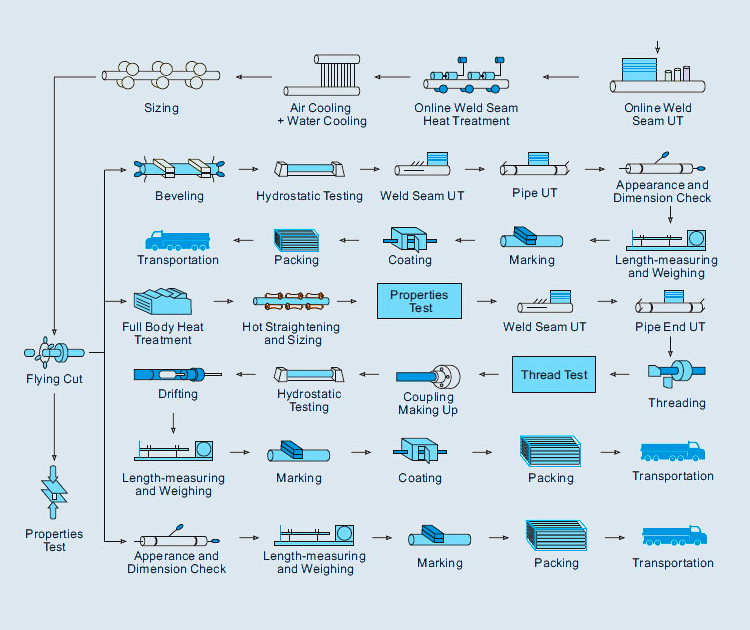

▇ ▍ Production Process of ERW Steel Pipe

▇ ▍ Equipment

High-frequency longitudinally welded pipe production line is mainly used for the production of welded steel pipe of φ8 ~ φ610 mm and wall thickness of 0.5~ 20mm as well as the production of square, rectangular, and other custom seamless pipe profile, Carbon steel pipe, ERW steel Tube. The line can manufacture welded pipes with good quality machining and high precision assembling at high speed.

equipment

▇ ▍ Sizes for Line Pipe Sizes for Round Pipe

dimension_sizes_for_line_pipe

▇ ▍ Sizes for Round Pipe
