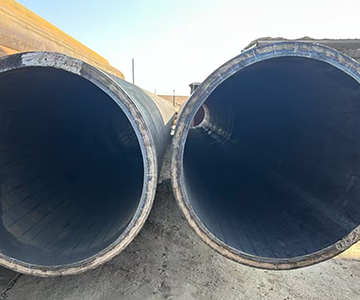

Details of the characteristics, production, and application of Q890E straight seam steel pipe

Q890E straight seam welded steel pipe is a high-strength low-alloy structural steel welded steel pipe, which is widely used in engineering machinery, mining equipment, bridge construction, high-pressure vessels, and other fields. Its excellent mechanical properties and welding properties make it one of the indispensable materials in modern industry.

First, the material characteristics and standard requirements of Q890E straight seam steel pipe

Q890E belongs to the high-strength structural steel in the GB/T 16270 standard. The letter "Q" represents the yield strength, "890" means the minimum yield strength is 890MPa, and "E" indicates that the material has the -40℃ low-temperature impact toughness requirement. This steel achieves a balance between high strength and good toughness by adding microalloy elements such as niobium, vanadium, and titanium, and combining controlled rolling and controlled cooling process (TMCP). In terms of mechanical properties, the tensile strength of Q890E straight seam welded steel pipe usually reaches 940-1100MPa, the elongation is ≥14%, and the -40℃ impact energy is ≥47J. The carbon equivalent (Ceq≤0.60%) is strictly controlled in terms of chemical composition, and the phosphorus and sulfur contents are limited to less than 0.020% and 0.010% respectively, which not only ensures the welding performance but also improves the crack resistance of the material.

Second, the key technology of the production process of Q890E straight seam steel pipe

Q890E straight seam steel pipe is mainly produced by the JCOE forming process or the roll bending forming process. The key technical links include:

1. Plate and strip pretreatment: Laser rust removal or shot peening is used to ensure surface cleanliness, and anti-rust protection is performed immediately after pretreatment. The width tolerance is controlled within ±1mm, which is the basis for ensuring the subsequent forming accuracy.

2. Precision forming: Through multiple progressive bending forming, the bending angle error of each forming step does not exceed 0.5°. The hydraulic servo control system is used in the JCOE process, and the forming pressure accuracy reaches ±5 tons.

3. High-frequency welding: Using 350-450kHz high-frequency current, the welding speed is controlled at 6-12m/min. The dual-probe eddy current detection system can identify defects larger than 0.1mm.

4. Weld heat treatment: Online medium-frequency induction annealing must be performed, the temperature is controlled at 650±15℃, and the holding time is not less than 90 seconds to eliminate welding residual stress.

5. Dimension control: The outer diameter tolerance is usually ±0.5%, the wall thickness tolerance is ±7.5%, and the ovality does not exceed 0.8% of the outer diameter. The finishing process is monitored in real time by a 10-point diameter measurement system.

Third, the quality inspection system of Q890E straight seam steel pipe

Q890E straight seam welded steel pipe implements strict inspection standards, mainly including:

- Non-destructive testing: 100% ultrasonic flaw detection (in accordance with GB/T 5777 standard) and 100% eddy current detection (GB/T 7735), which can detect defects with a depth of ≥5% wall thickness. TOFD testing is also required for high-end applications.

- Mechanical testing: 2 tensile specimens and 3 impact specimens (-40℃) are taken from each batch. For large diameter pipes, full-size flattening tests are also required.

- Metallographic analysis: Check the grain size of the weld area (should reach level 8 or above) and evaluate the banded structure level (not exceeding level 2).

- Anti-corrosion test: including 240-hour salt spray test and 28-day cyclic corrosion test, requiring the single-side corrosion width at the scribe line to be ≤2mm.

Fourth, typical application scenarios of Q890E straight seam steel pipes

1. Engineering machinery field: As the core material of crane booms and pump truck booms, it can reduce weight by 15%-20% compared with Q690 steel. After a certain model of 70-meter pump truck uses Q890E pipes, the total weight of the boom is reduced by 1.2 tons, and the fatigue life is increased by 30%.

2. Mining equipment: used to manufacture columns and jacks for hydraulic supports, with a working pressure of 45MPa. The φ426×30mm Q890E column pipe used in a coal mine in Shanxi has a service life of 8 years (ordinary materials are only 5 years).

3. Special vehicles: The roll cage of military armored vehicles adopts Q890E variable-section welded steel pipe, which is 25% lighter than the original design while maintaining the protection level.

4. New energy field: The fastening ring of the connecting bolt of the wind turbine tower begins to use Q890E material, which can withstand the preload of 2000MPa-level bolts.

Fifth, the market status and development trend of Q890E straight seam steel pipe

In 2023, the market size of high-strength welded steel pipe in my country will be about 2.8 million tons, of which Q890E grade accounts for about 8%, and the annual growth rate remains at about 12%. The technical development direction presents three characteristics:

1. Lightweight: Demand drives the application of higher-strength materials, and higher-grade materials such as Q960E and Q1100E have begun trial production;

2. Intelligence: The production trend is obvious, and a demonstration factory has realized the full process digital twin control from cutting to finished products;

3. Green manufacturing: The requirements are improved, the pickling process is gradually replaced by laser cleaning, and the energy consumption per ton of pipe is reduced by 18% compared with the traditional process.

It should be noted that Q890E welded steel pipes must follow a strict welding procedure qualification (WPS) during use. It is recommended to use 80% Ar + 20% CO₂ shielding gas, and the preheating temperature should be controlled at 120-150°C. Avoid contact with environments with high Cl- content during storage, and use special V-shaped brackets during transportation to prevent local deformation. With the development of the high-end equipment manufacturing industry during the "14th Five-Year Plan" period, the application of Q890E straight seam welded steel pipes in new fields such as deep-sea oil and gas development and large shield machines will continue to expand, and the market demand is expected to exceed 350,000 tons in 2025. The focus of material research and development will shift to improving anisotropy and improving Z-direction performance to meet more stringent engineering needs.
