▇ ▍ Description
"CARBON STEEL SHEETS & PLATES SPECIFICATION :
Standard : ASTM / ASME A 516 / A283
Sizes : 1 MM TO 200 MM THK IN 1000 MM TO 3000 MM WIDTH x 2500 MM / 5000 MM / 10000 MM / COIL.
Thickness : 3/16"" to 24""
Finish : Cold rolled sheet (CR), Hot rolled plate (HR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Coils, Foils, Shim Sheet, Rolls, Chequered Plate, Perforated Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc."
"Below there are Different Types Of Carbon Steel Plates And Their Usage.
Carbon Structural Steel Plate
It is mostly used in construction industry and hence, the quality, durability, and performance have to be of highest standard. They have to withstand overweight load and pressure and must be corrosion resistant. It is known by the name construction steel plate.
Boiler Steel Plate
These are high-pressure plates generally used in designing vessels, boilers, and heat containers. Carbon boiler steel plates have low corrosive property and can withstand low heat. Several layers of either chromium or nickel are added to make it suitable for usage in various environments.
Tanks Steel Plate
These plates are used for building of oil and gas tanks, storage tanks, water tanks, and tanks for storage other all kinds of stuffs.
Carbon Shipbuilding Steel Plate
Shipbuilding Steel Plate – These plates are in high demand especially from oil and gas industry as they require thick plates of extremely good quality. Most of these are made according to the specifications of the customers and the steel used is certified because a small lamellar tear can be fatal."

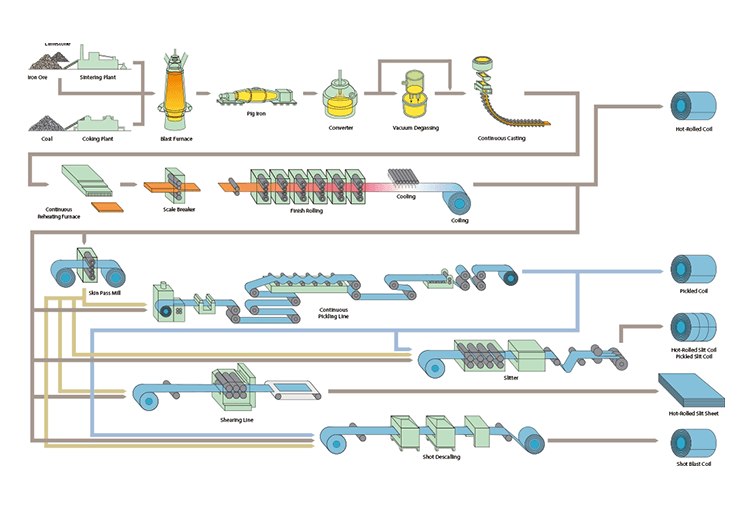

▇ ▍ Hot-Rolled Steel Plate Manufacturing Process

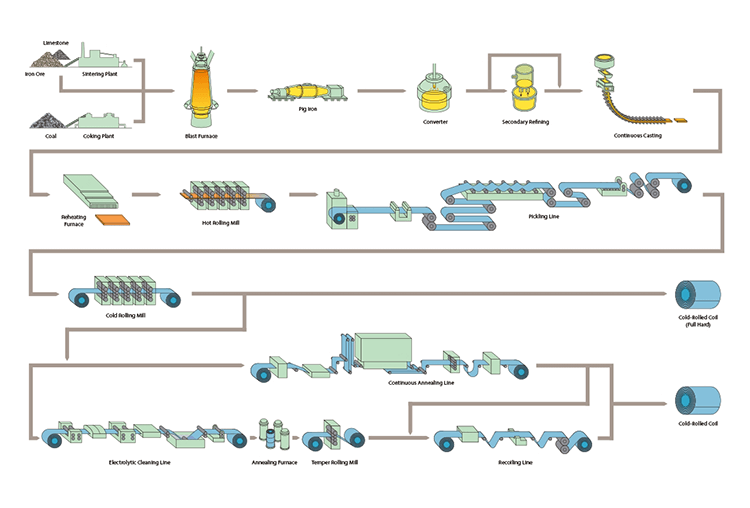

▇ ▍ Cold-Rolled Steel Plate Manufacturing Process
▇ ▍ Equipment

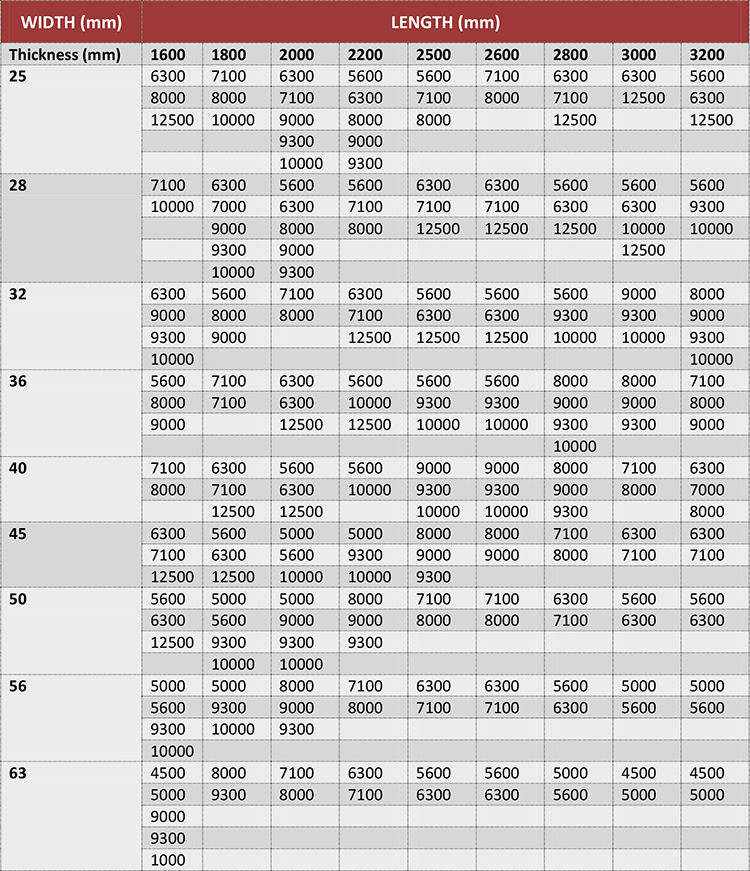

▇ ▍ Dimension
